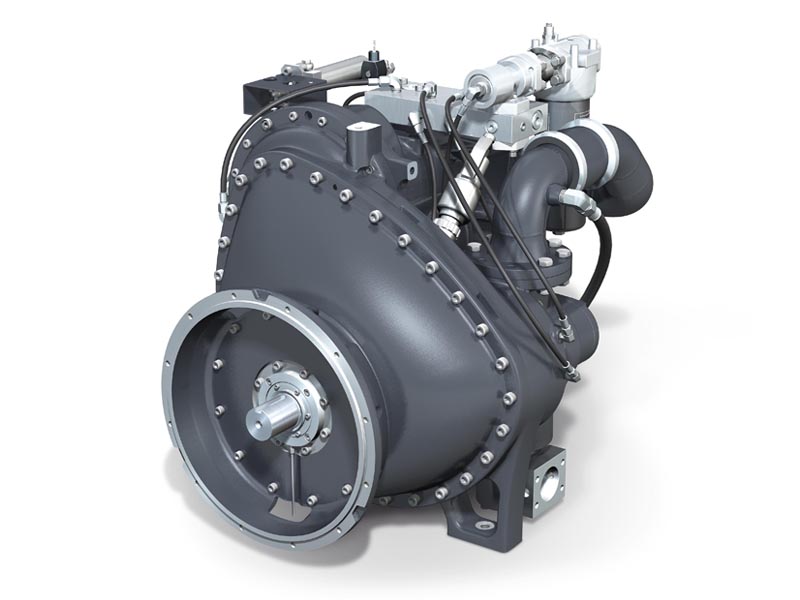

MT25-G 2-Stage Compressor
Power range up to 457 kW / 563 HP
Capacity up to 42 m³/min / 1,500 cfm
Inlet Pressure up to 0.35 barg / 5 psig
Discharge Pressure up to 25 barg / 350 psig
Weight approx. 1,032 kg / 2,270 lbs
ROTORCOMP provides with the two-stage screw compressor MT25-G a long term approved screw booster design for pressures up to 25 bar.
The two-stage compressor increases the pressure from ambient or up to 350 mbar to up to 25 bar with a maximum delivery capacity of 42 m³/min.
Multi staging is employeed for higher overall efficiency, high pressures and less noise. The thrust balancing piston arrangement incorporated in the multi staging models minimizes thrust loading thus increasing the bearing life.
The major applications are downhole drilling, PET bottle blow molding and Nitrogen generation.
All information at a glance!
Advantages of our new EVO® technology
- Long life cycle due to increased bearing dimensions
- Operating pressure range from 17 to 25 barg
- High manufacturer assembling
- Quality assurance – bench test of every air end before leaving our factory
- Highest flexibility for your package design
- Compact design for reduced floor space
- Smooth, low vibration running (no foundations)
- Lowest operating noise level
- Continuous air supply (no pulsations)
- Operation with bio-degradable and food-grade lubricants
- Designed for continuous duty
- Load-idling-operation or frequency controlled operation for variable delivery capacity
- Low maintenance cost
- Suitable for all types of motors
- Drive option: direct drive
- Base and face-flange mounting
- The MT25-G 2-Stage Compressor include:
- Screw compressors
- Oil distribution unit with oil check valve, oil filter
- Inter-stage relief valve
Optional:
SAE 1 Engine adapter, Inlet control valve, Discharge check valve, Thermostat valve and many more components.
Ultimate efficiency and reduced noise through
- High volumetric output due to
- Reduced internal leakage
- Thermally optimized oil injection system
- Improved suction port efficiency giving reduced internal losses
- Low power consumption due to
- Optimized torque characteristics and reduced internal friction
- Improved outlet port with lower pressure losses
- Reduced noise and low vibration due to
- Smooth rolling of the rotors
- Optimized outlet port
| Type | Power range | Weight | Inlet pressure | Discharge pressure | Capacity* | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| kW | hp | kg | lbs | bara | psia | barg | psig | m3/min | cfm | |||||
| MT25-G | 457 | 563 | 1,032 | 2,270 | 0.2 | 1,35 | 0.24 | 5 | 17 - 25 | 250 - 350 | 19 | 42 | 673 | 1,492 |
| MT35-G | 567 | 760 | 1,032 | 2,270 | 0.2 | 1.35 | 0.24 | 5 | 17 - 35 | 250 - 500 | 19 | 42 | 673 | 1,492 |
